Windsor Hills Substation
Southern California Edison
4kV, 16kV, 66kV
Windsor Hills Substation
Los Angeles, CA
Windsor Hills Substation
Customer:
Southern California EdisonLoad:
4kV, 16kV, 66kVDate:
06/2023Scope:

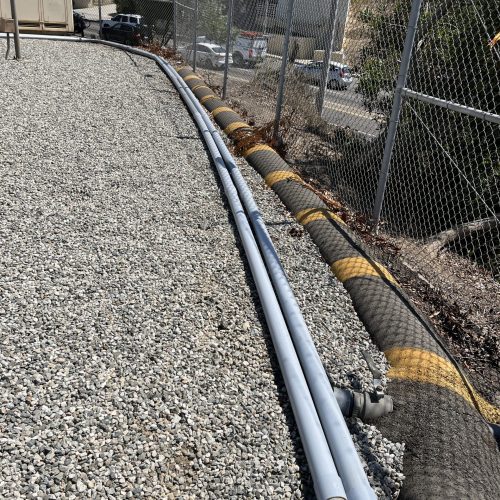

- Install temporary AC/DC feeds.

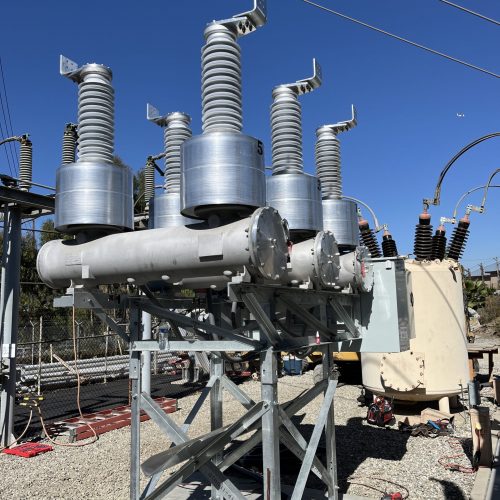

- Replace three (3) 66kV CBs.
- Replace 66kV Line PTs.

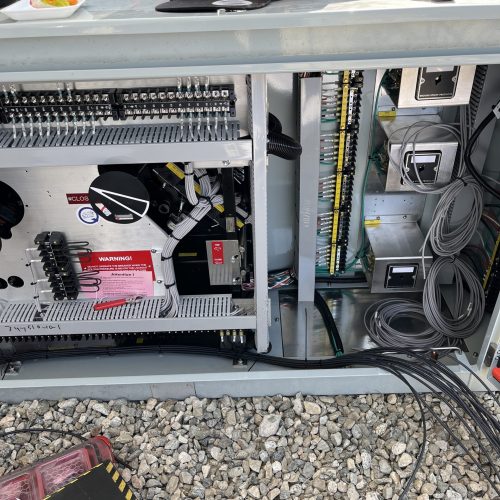

- Equip with new 16kV CB and three (3) sets of Disconnects and IPS retention.
- Replace 16kV SL&P.
- Install one (1) 1200/5A CT, pull box mounted on Cap structure for new CT and replace primary conductor.

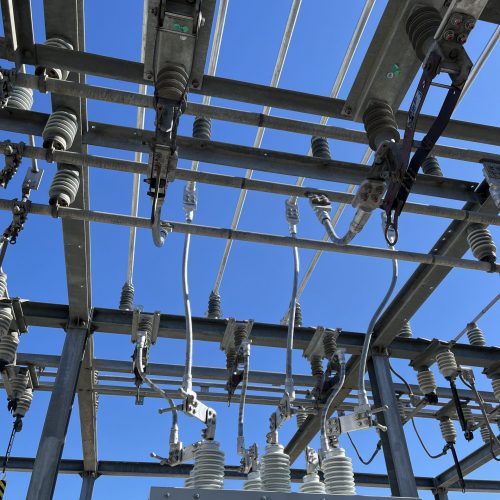

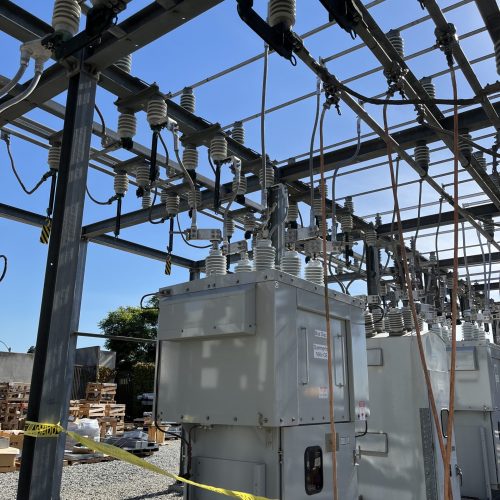

- Rebuild 4kV Open Air Switchrack.

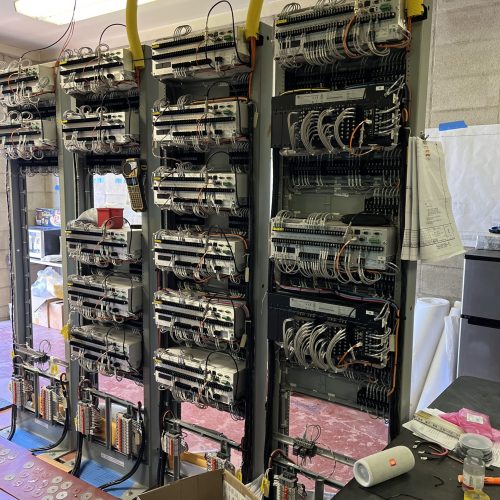

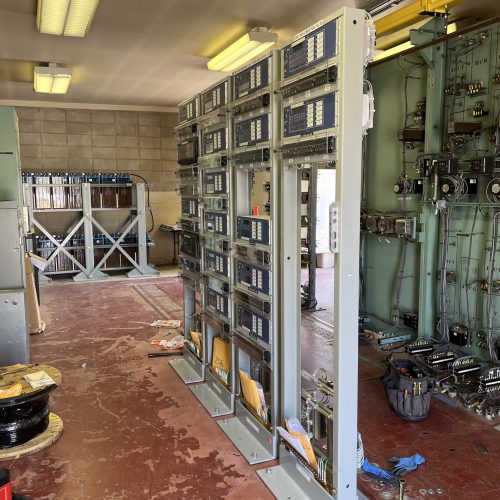

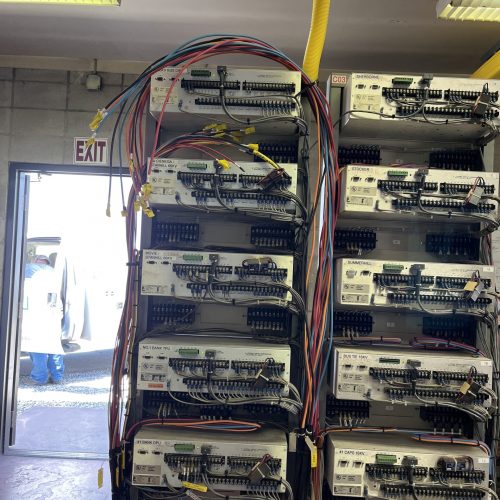

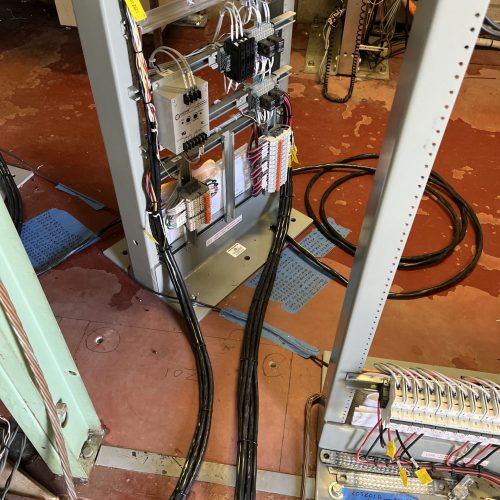

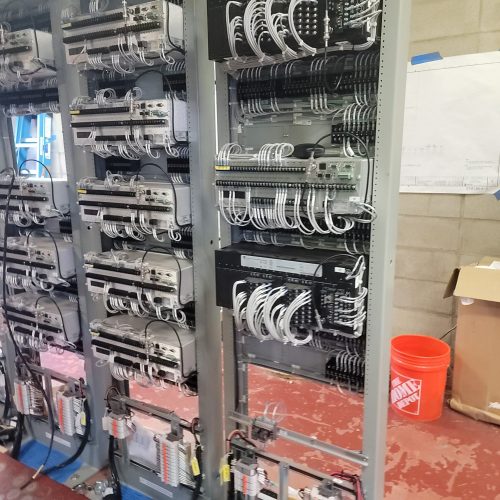

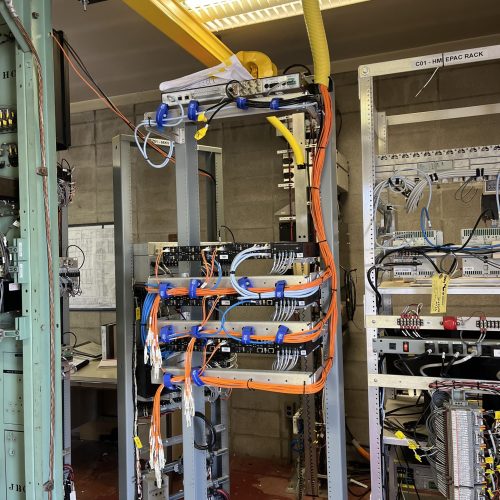

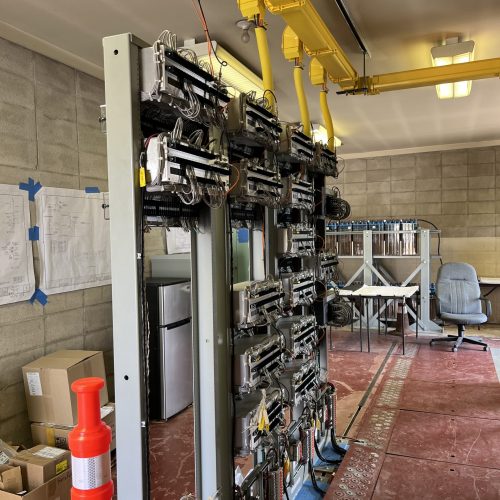

- Install Relay Racks Z01-Z08, upgrade 4kV/16kV and 66kV Protection Relays, Replace existing 66kV Line HCBs.
