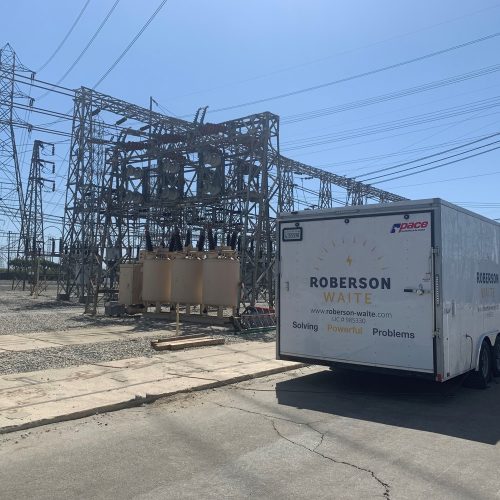

Laguna Bell Substation

Commerce, CA

Laguna Bell Substation

Customer:
Southern California Edison
Load:
66kV
Date:
04/2021
Scope:

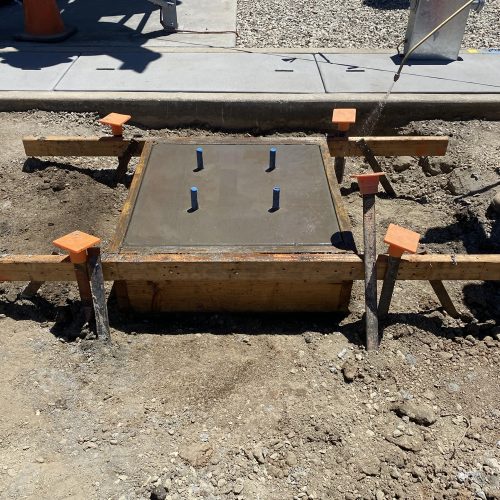

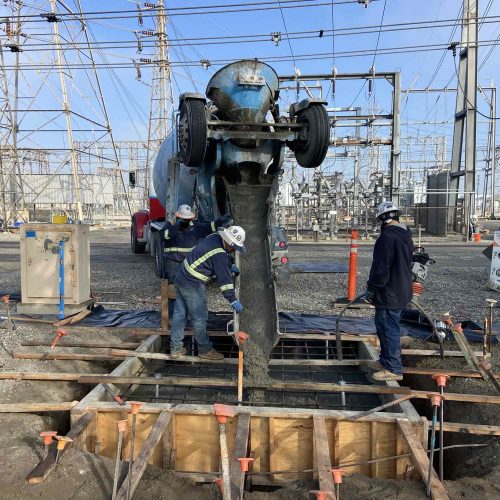

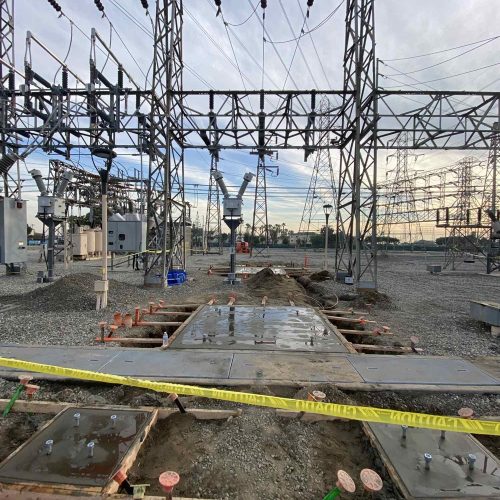

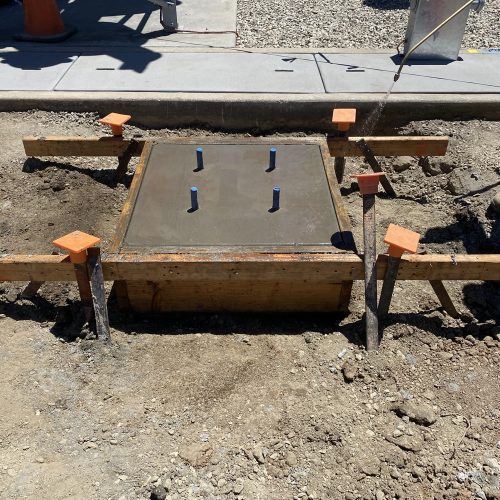

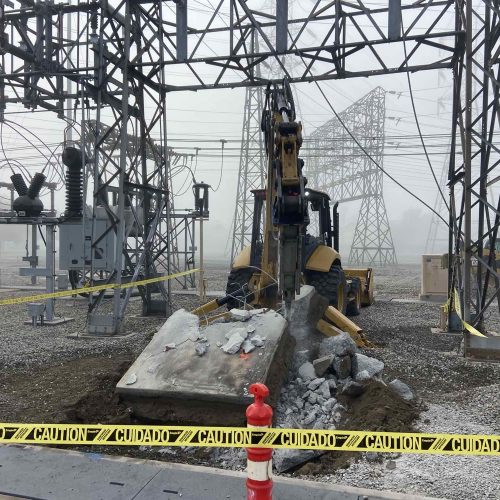

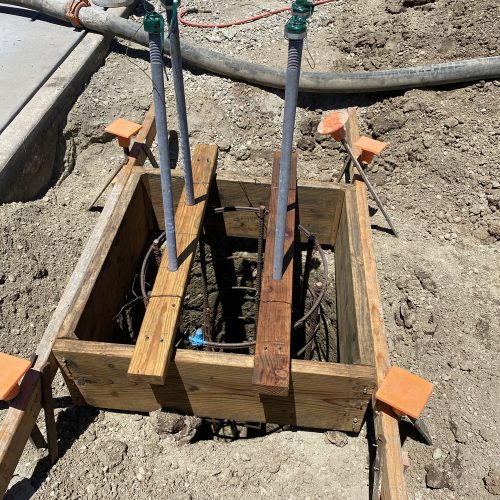

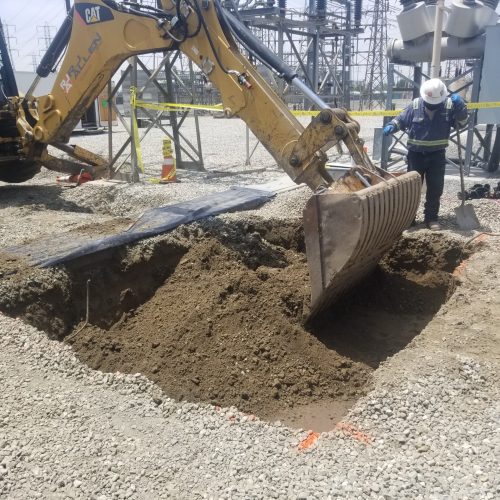

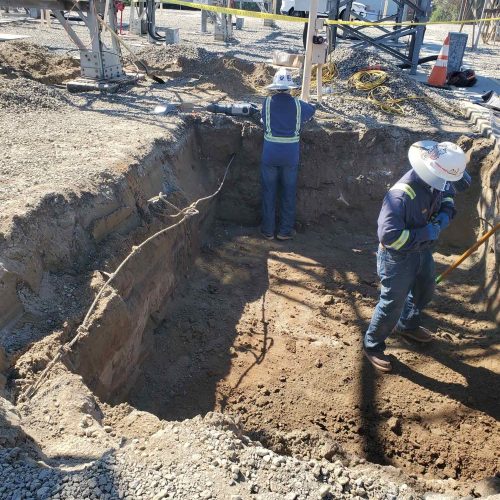

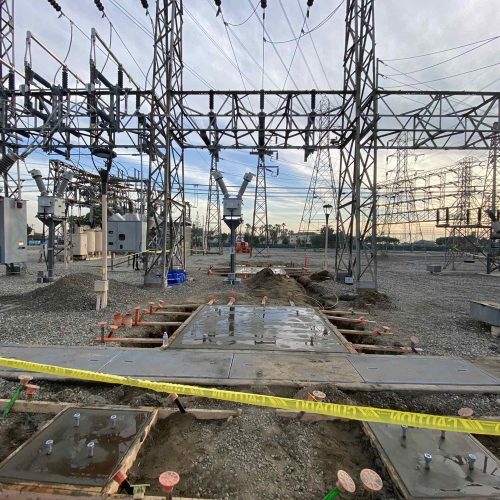

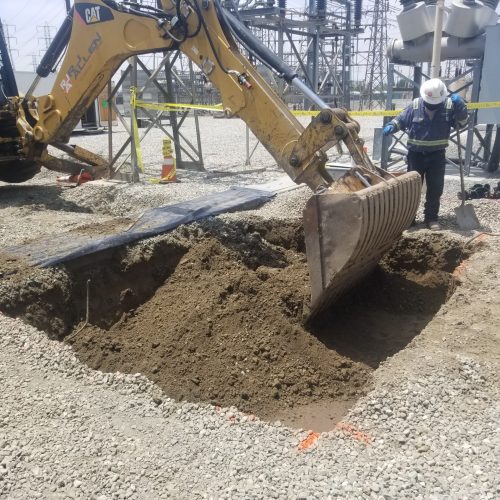

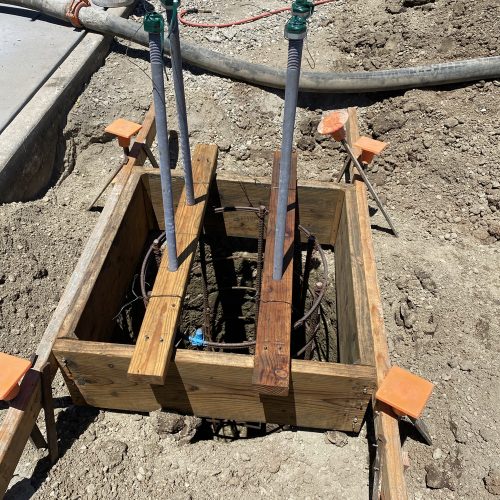

  • Demo existing foundations. Install fourteen (14) 66kV CB foundations.

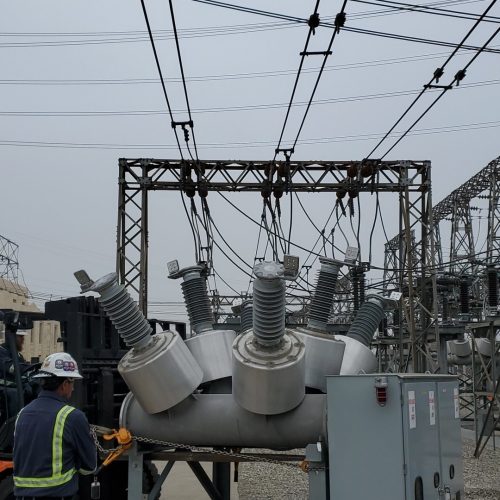

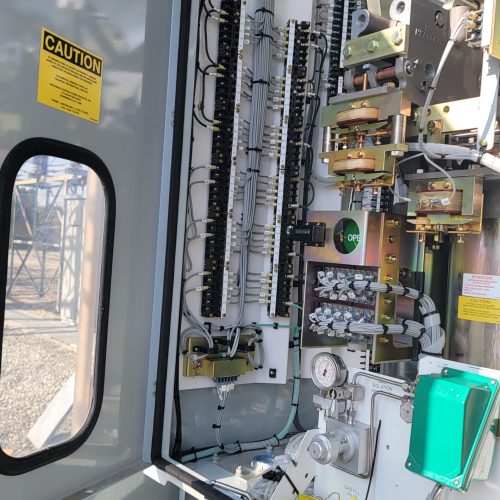

  • Replace fourteen (14) 66kV CBs.

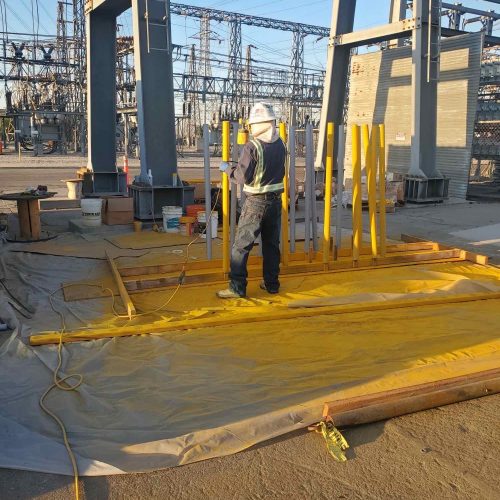

  • Install 3′ chain link barrier in 16kV and 220kV rack.

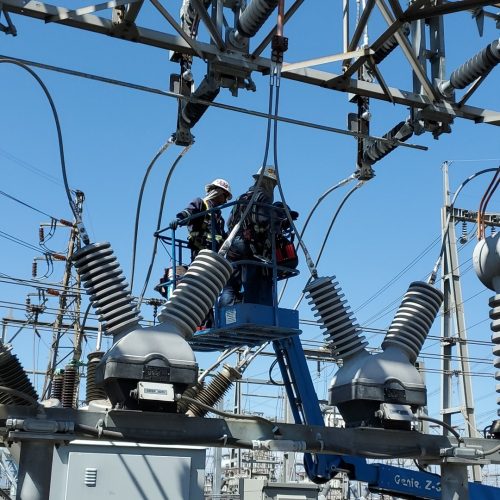

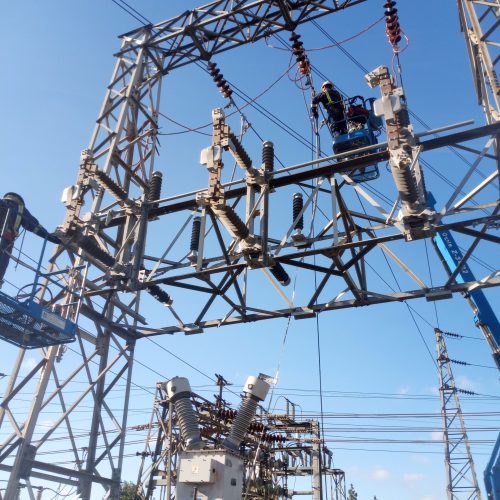

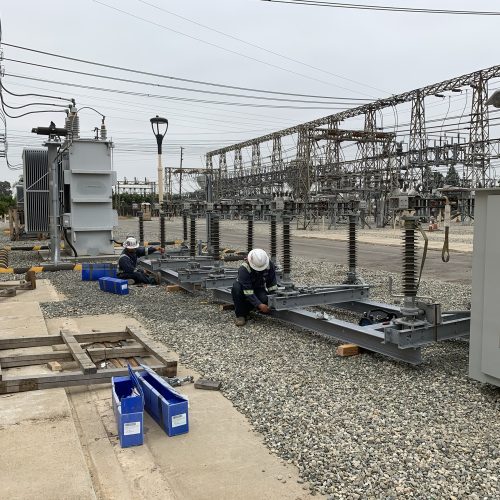

  • Replace twenty-four (24) sets of vertically group operated disconnect switches. Replace ten (10) sets of vertically group operated disconnect switches.
  • Demo existing foundations, install one (1) PT1 and two (2) F30-8/A1-2.
  • Remove metering unit and PT, replace with two (2) new PTs and two (2) CTs.

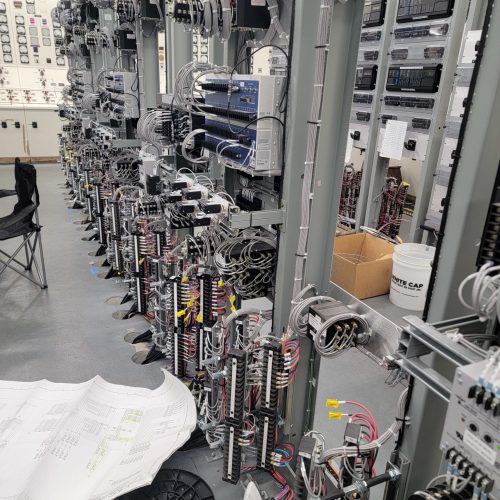

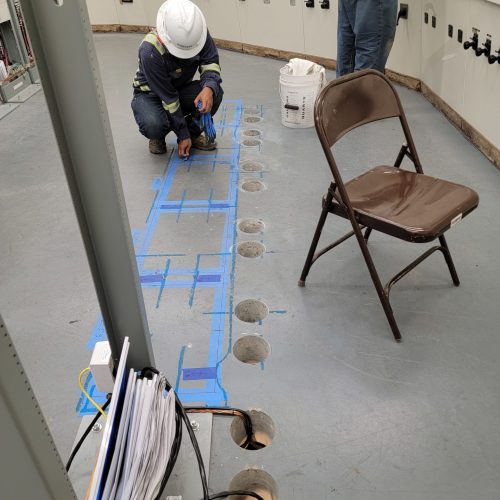

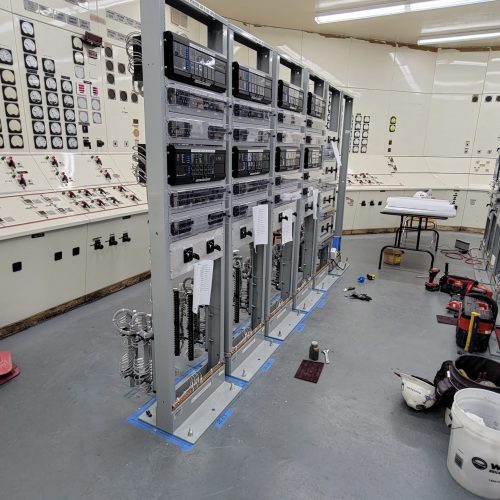

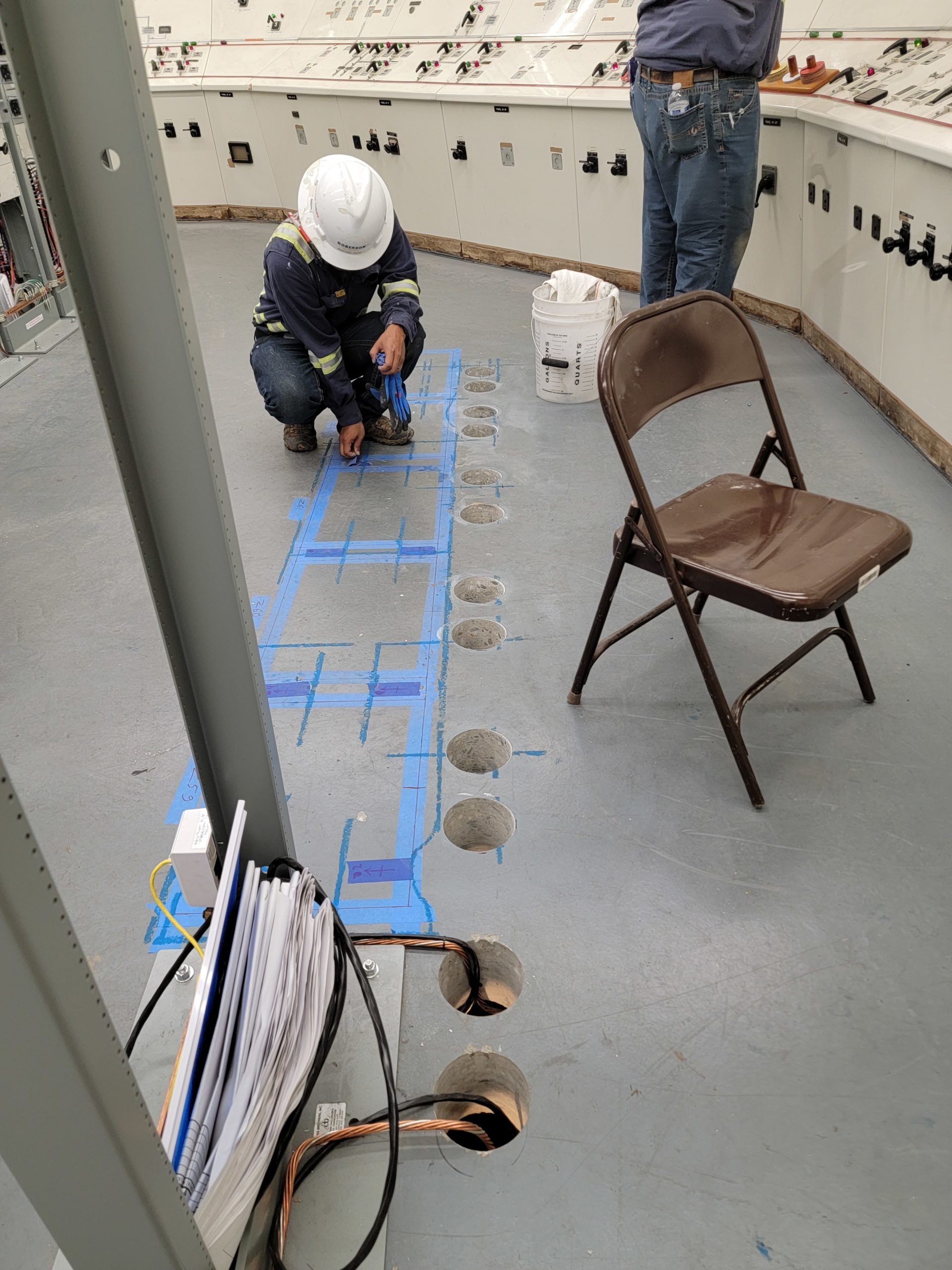

  • Core drill, install five (5) 19″ racks.
